Quality Audits

If the system is not licensed for Quality Audits, the following will be inaccessible.

All audits can be found at Audit Jobs under Traceability on the side navigation.

Side navigation under Traceability

Creating

Audit jobs can be run on two different sources of images: Inspection results already taken from existing inspection points or from new images uploaded to the system directly.

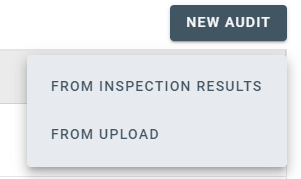

Create an audit

Inspection Results

Select an inspection point and then filter the corresponding inspection results by a date range. If the inspection point has a workspace associated with it, the workspace will be added to the job.

External Images

Select a workspace on the system or add a new one and then upload the images to run on the workspace. The selected workspace will be the workspace used to run the job.

Running

If a workspace was not already selected, choose a workspace by clicking the Edit button in the top left and then clicking Select IPM Workspace. The name and description of the job can also be changed this way.

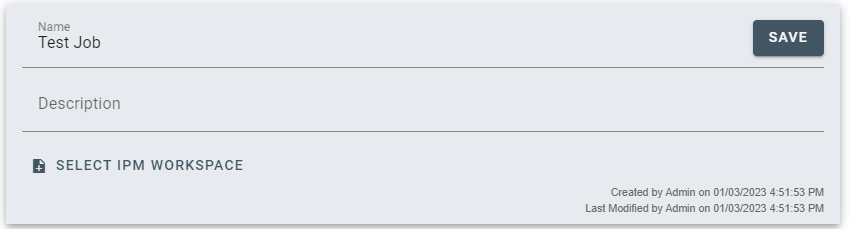

Editing an Audit Job

Exporting

Once a job has been ran at least once, the results of the last run can be exported to either .csv or .xlsx.

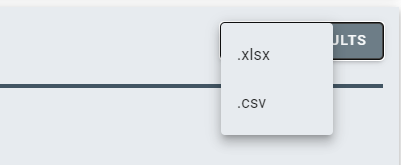

Exporting an Audit Job
